OmniVision Announces Industry’s First 8 Megapixel Medical-Grade Image Sensors for Single-Use and Reusable Endoscopes

2021-06-29 | Return

The OH08A/B Image Sensors Provide High Resolution with Excellent Image Quality for 10-12 mm Outer Diameter Endoscopes

SANTA CLARA, Calif. — June 29, 2021 — OmniVision Technologies, Inc., a leading developer of advanced digital imaging solutions, today announced its next-generation OH08A and OH08B CMOS image sensors―the first 8 megapixel (MP) resolution sensors for single-use and reusable endoscopes. Additionally, the new OH08B is the first medical-grade image sensor to use OmniVision’s award-winning Nyxel® near-infrared (NIR) technology―bringing revolutionary imaging capabilities beyond the visible spectrum to the medical industry.

The medical-grade OH08A image sensor features a 1/2.5-inch optical format, incorporates 1.4 µm PureCel®Plus-S pixel technology and offers 4K2K resolution in a small 7.1 x 4.6 mm package, which is ideal for chip-on-tip endoscopes. The OH08B has a 1/1.8-inch optical format, uses a larger 2.0 µm PureCel® pixel in a 8.9 x 6.3 mm package and features OmniVision’s Nyxel® technology, which allows enhanced visualization in NIR spectral range.

“Our next-generation OH08A/B 8MP image sensors are targeted at endoscopes with a 10-12 mm outer diameter, such as gastroscopes, duodenoscopes, amnioscopes, laparoscopes and colonoscopes. They deliver higher image quality, up to 4K2K resolution at 60 fps, greatly improving the doctor’s ability to visualize the human anatomy during these important procedures,” said Richard Yang, senior staff product marketing manager at OmniVision. “In the OH08B, we’ve taken our sensor to the next level by adding Nyxel® technology, which offers better performance in color and IR sensitivity, enabling doctors to see sharper video during NIR, fluorescence, chromo-endoscopy and virtual endoscopy procedures. Also, higher sensitivity results in less illumination, thus reducing the heat at the tip of the endoscope.”

The OH08A is built on OmniVision’s next-generation PureCel®Plus-S stacked die technology, enabling high functionality in the smallest possible die size. The sensor utilizes this proprietary pixel technology to improve image quality by reducing or eliminating fixed pattern noise, as well as providing high full well capacity (improving dynamic range), excellent low light sensitivity, zero blooming and lower power consumption. The high frame rate of 60 fps reduces smearing to produce a crisp, stable image.

The OH08A offers high quality 8MP Bayer still frame or 4K video in real time. It features 4-cell three-exposure high dynamic range (HDR) with tone mapping for improved HDR output at 1080p60 or native 4K2Kp60 resolution and two-exposure staggered HDR support.

The OH08B is a larger, higher performance device based on OmniVision’s industry-leading Nyxel® technology for the best image quality in both color and IR imaging. Nyxel® technology provides 3x quantum efficiency (QE) improvement at both the 850 nm and 940 nm NIR wavelengths. The excellent QE also allows the use of lower-power IR illumination, resulting in significantly reduced chip-on-tip power consumption.

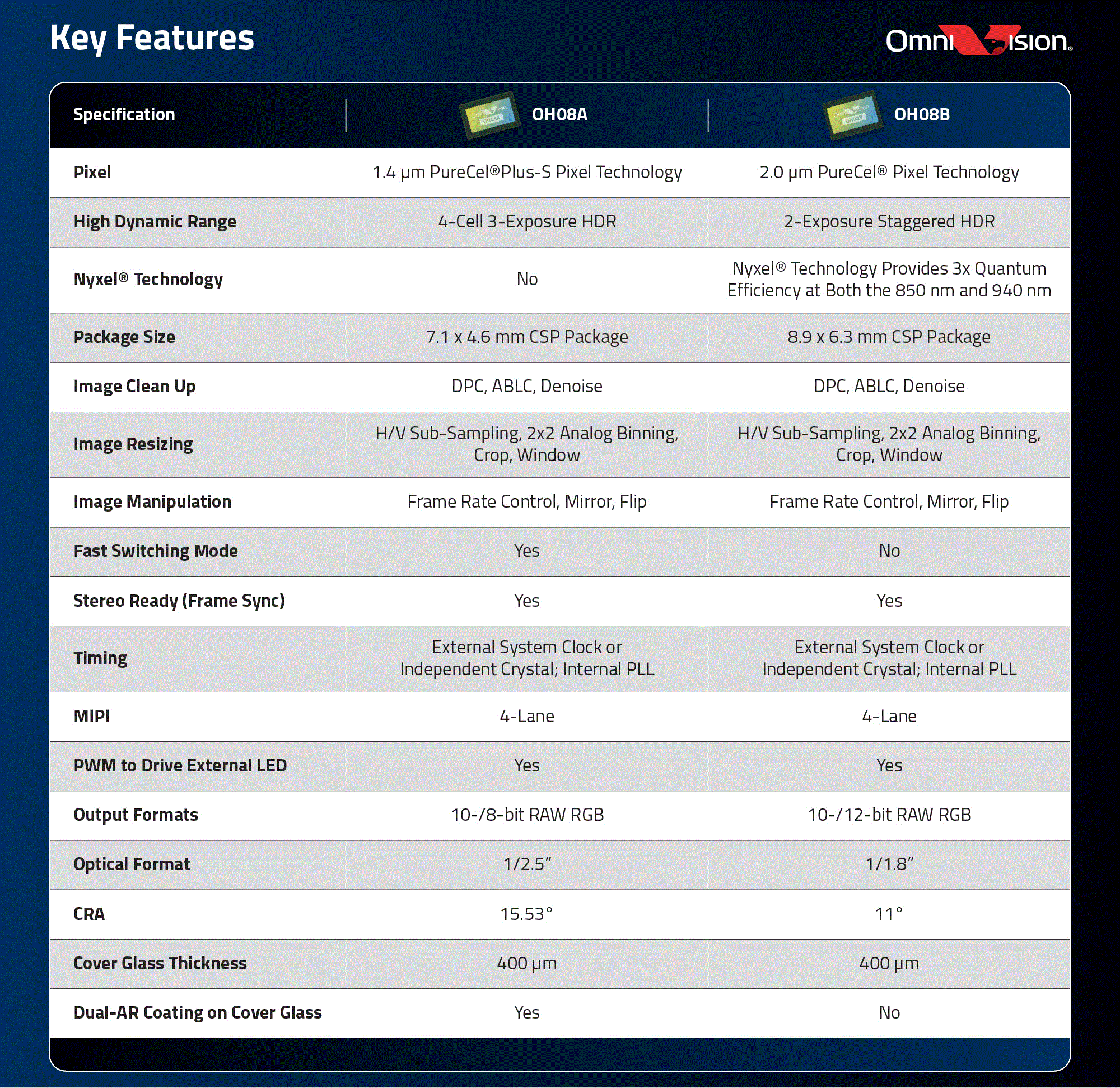

Other key features include a 15.5 degree chief ray angle (CRA) for the OH08A and 11 degree CRA for the OH08B, enabling the use of lenses with large field of view and short focus distance; pulse width modulation output LED drivers; and 4 lane MIPI output with raw data. These sensors are stereo ready with frame synchronization to support a host of depth perception applications. Additionally, they are autoclavable for reusable endoscope sterilization.

The OH08A/B image sensors are available for sampling now in a chip scale package. For more information, contact an OmniVision sales representative: www.ovt.com/contact-sales.
