Toshiba Releases Photovoltaic-output Photocoupler for Isolated Solid State Relays High open voltage contributes to driving high-voltage power MOSFETs

2021-05-27 | Return

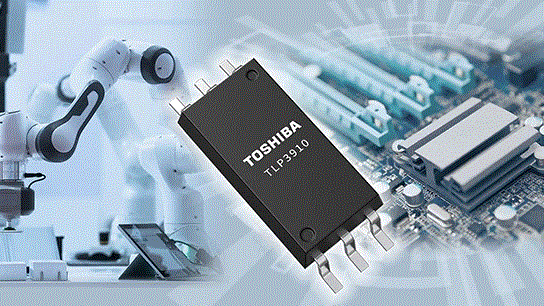

TOKYO—Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched “TLP3910,” a photovoltaic-output photocoupler (“photovoltaic coupler”) housed in a thin SO6L package,

suitable for driving the gates of high-voltage power MOSFETs used as isolated solid state relay (SSR)[1]　function. Volume production shipments start today.

An SSR is a kind of semiconductor relays that has a photo triac, a photo transistor or photo thyristor as its output device. It is suitable for applications for performing ON/OFF control of large currents.
A photovoltaic coupler is a photorelay with its optical devices but without the MOSFET used to perform switching functions. In configuring an isolated SSR, high-voltage, large-current switching, which photorelays handle with difficulty, can be implemented easily by combining a photovoltaic coupler and a MOSFET.

Driving a high-voltage power MOSFET with a gate voltage of 10V or higher, requires connecting two of Toshiba’s current product, the TLP3906, in series, as it has a low open voltage. In contrast, the new TLP3910 has a minimum open voltage of 14V, double that of TLP3906, and only one is required to drive the gate of a high-voltage power MOSFET. This contributes to part-count reduction.

Improvement to the built-in discharge circuit has realized a typical turn-off time of 0.1ms, about 1/3 that of TLP3906 and about 1/30 that of TLP191B, and this delivers higher speed operation.

TLP3910 is Toshiba’s first photovoltaic coupler to feature a minimum isolation voltage of 5000Vrms[2] while maintaining the basic performance of the current products, TLP191B and TLP3906. This allows use in industrial equipment driven by AC400V systems. The scope of application has also been extended by its high-temperature operation of 125°C.

Notes:
[1] In isolated SSRs, the primary and secondary sides are electrically isolated. Switching a circuit connected to the AC line and between devices with different ground potential can be controlled through the isolation barrier.
[2] Among photovoltaic couplers, Toshiba survey as of May 27, 2021.

Applications

Isolated SSRs: gate drive of high-voltage power MOSFETs for switches.

> Industrial equipment: relay contact output for I/O of programmable logic controllers and the like; solenoid driver control parts of braking systems; main power supply circuits/inrush current protection circuits; battery voltage monitoring parts for battery management systems (BMS); ground fault detection parts.
> Measuring equipment: power supply line switching; measuring line switching

Features

> High open voltage: VOC=14V (min)
> Short-circuit current: ISC=12μA (min) @IF=10mA,　(C20 rank product) ISC=20μA (min) @IF=10mA
> High isolation voltage: BVS=5000Vrms (min)
> High operation temperature rating: Topr (max)=125°C
> Creepage(Space Distance): 8mm (min)

Main Specifications
(Unless otherwise specified, Ta=25°C)

Part number			TLP3910
Control circuit			Built-in
Absolute maximum ratings	Operating temperature T_opr (°C)		-40 to 125
Electrical characteristics	Input forward voltage V_F min/typ./max (V)	@I_F=10mA	3/3.3/3.6
Coupled electrical characteristics	Open voltage V_OC min (V)	@I_F=10mA	14
	Short-circuit current I_SC min (μA)	@I_F=10mA	12
			(C20 rank product) 20
	Trigger LED current I_FT max (mA)		3
Switching characteristics	Turn-on time t_on typ./max (ms)		0.3/1.0
	Turn-off time t_off typ./max (ms)		0.1/0.5
Isolation characteristics	Isolation voltage BV_S min (Vrms)		5000
Mechanical parameters	Creepage distances/Clearance min (mm)		8.0
Package	Name		SO6L
	Size typ. (mm)		3.84×10×2.1
Safety standards			UL, cUL, VDE(option(D4))

Follow the link below for more on the new product.

TLP3910

Follow the link below for more on Toshiba’s optical semiconductor devices.

Optical Semiconductor Devices
