Automotive bipolar transistors helping downsizing equipment : TTA500, TTA501, TTA502, TTC500, TTC501

2021-03-30 | Return

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched five automotive bipolar transistor products for MOSFET gate drive circuits and LED drive circuits of automotive backlights and other applications : “TTA500, TTA501, TTA502, TTC500 and TTC501”. They use the small and highly allowable SOT-23F[1] package to collector power dissipation. The lineup includes collector-emitter voltage ratings from -50 V to 50 V and collector current ratings from -2.5 A to 2.5 A.

The new products use the SOT-23F[1] package and features absolute maximum ratings and electrical characteristics equivalent to products using the larger SOT-89[2] package. In addition, they have reduced their mounting area by about 60 % with equivalently allowable collector power dissipation. This helps reduce the size of equipment.

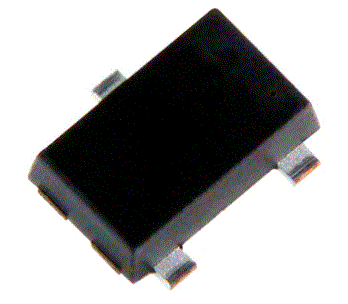

The SOT-23F[1] package uses a flat-lead structure while remaining land-pattern compatible with the SOT-23 package. In terms of mounting reliability, it has been checked against the temperature cycle requirement levels for automotive applications and satisfies the mounting quality requirements for automotive applications. The new products are also AEC-Q101 qualified.

And another product TTC502 that has 120 V collector-emitter voltage rating and 1 A collector current rating will be in mass production[3].

Notes :
[1] Package size 3.1 mm x 2.5 mm (max), mounting area 7.75 mm2 (max)
[2] Package size 4.6 mm x 4.2 mm (max), mounting area 19.32 mm2 (max)
[3] Mass procuction will be started in September, 2021. (as March of 2021)

Features

> A wide range of collector-emitter voltage ratings in the lineup : VCEO=ｰ50 V to 50 V
> Small SOT-23F[1] package with highly allowable collector power dissipation :
Featuring a collector power dissipation rating of 1 W (@DC) with a package size of 2.4 mm x 2.9 mm (typ.)
> AEC-Q101 qualified

Applications

> Automotive equipment (LED backlight, accessory light, etc.)
> Consumer equipment, industrial equipment (LED display device, etc.)

Product Specifications

(@Ta=25 °C)

Part number	Polarity	Absolute maximum ratings			Electrical characteristics
		Collector- emitter voltage V_CEO (V)	Collector current (DC) I_C (A)	Collector power dissipation DC P_C (W)	Collector- emitter saturation voltage V_CE(sat) max (V)	DC current gain h_FE
		Collector- emitter voltage V_CEO (V)	Collector current (DC) I_C (A)	Collector power dissipation DC P_C (W)	Collector- emitter saturation voltage V_CE(sat) max (V)	min	max
TTA500	PNP	-50	-1.0	1	-0.2	200	500
TTA501		-50	-2.0	1	-0.2	200	500
TTA502		-20	-2.5	1	-0.19	200	500
TTC500	NPN	50	1.0	1	0.12	400	1000
TTC501		50	2.5	1	0.14	400	1000
TTC502^[3]		120	1.0	1	0.14	120	300

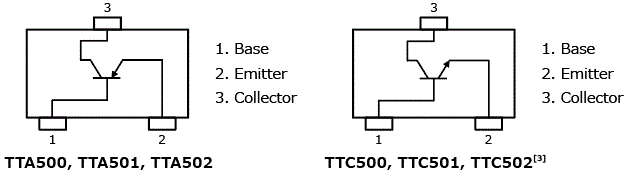

Pin Assignments

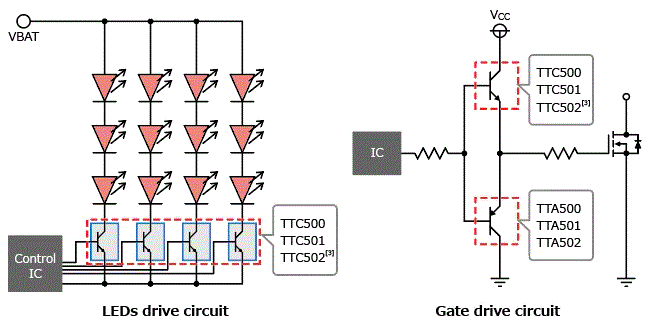

Application Circuit Examples

The application circuits shown in this document are provided for reference purposes only.
Thorough evaluation is required, especially at the mass-production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.

* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
