40 V/60 V N-channel power MOSFETs with small and surface mounting that contributes to low power consumption of automotive equipment : XPN3R804NC, XPN7R104NC, XPN6R706NC, XPN12006NC

2020-05-13 | Return

Toshiba Electronic Devices & Storage Corporation has launched four new N-channel power MOSFETs of small and surface-mount TSON Advance(WF) packages for automotive equipment. They are newly on our lineup as low On-resistance N-channel MOSFET packed in TSON Advance(WF): 40 V “XPN3R804NC” and “XPN7R104NC,” 60 V “XPN6R706NC” and “XPN12006NC.”

The new products use TSON Advance(WF) packages with a wettable frank terminal structure, which facilitate automated visual inspections of board mounting conditions. In addition, the low On-resistance products using Toshiba’s "U-MOSVIII-H" processes contribute to power saving of equipment. This enables us to replace Toshiba’s conventional products of the same size package. Performance improvements can also contribute to the downsizing of ECUs by replacing similar 5×6 mm sized products.

Features
AEC-Q101 qualified
Low On-resistance :
RDS(ON)=3.8 mΩ (max) @VGS=10 V (XPN3R804NC)
RDS(ON)=7.1 mΩ (max) @VGS=10 V (XPN7R104NC)
RDS(ON)=6.7 mΩ (max) @VGS=10 V (XPN6R706NC)
RDS(ON)=12.0 mΩ (max) @VGS=10 V (XPN12006NC)

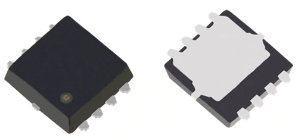

Small and surface mounting TSON Advance(WF) package with wettable flank terminal structure :
3.3×3.6 mm (typ.)

Applications
Automotive equipment
Switching regulators
DC-DC converters
Motor drivers

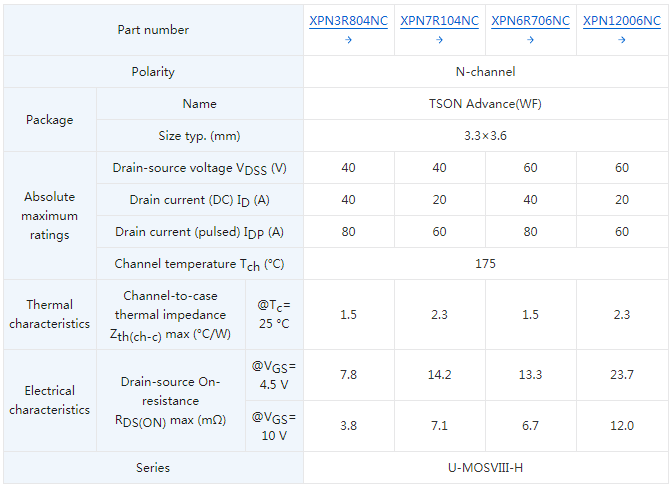

Product Specifications
(Unless otherwise specified, @Ta=25 °C)

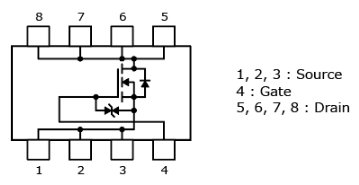

Internal Circuits

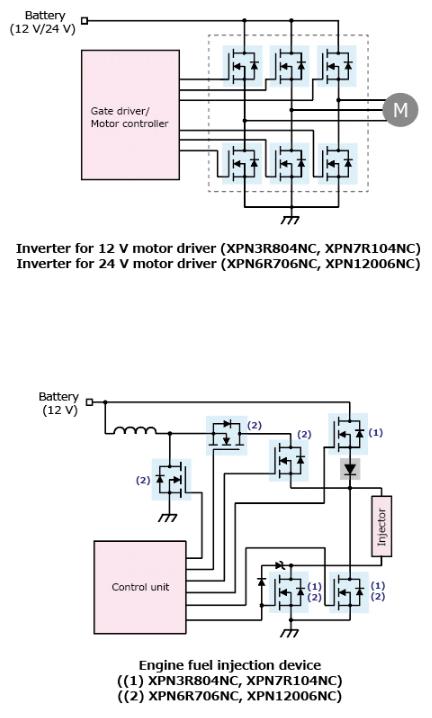

Application Circuit Examples

Note:
The application circuits shown in this document are provided for reference purposes only.
Thorough evaluation is required, especially at the mass production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.

Information in this document, including product prices and specifications, content of services and contact information, is correct on the date of the announcement but is subject to change without prior notice.
