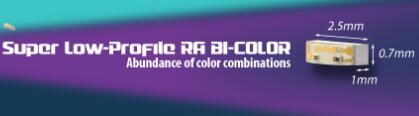

Super Low-Profile RA Bi-Color APFA2507 SMD LED

2023-03-31 | Return


Kingbright presents its newest super low-profile RA bi-color SMD LED selections – APFA2507 Bi-Color series. This low-profile addition expands our side view SMD LED coverage to support more customers in various market sectors. Kingbright RA low profile bi-color SMD LED features 30% less thickness (0.7 mm) compared to standard 3010 RA package. This APFA2507 RA side-view product series is available in two different pinouts – each color can be controlled individually or share a common pin to meet different design requirements. Kingbright low profile Bi-Color RA SMD is the ideal package for any backlight and indicator applications with it’s wide viewing angle at 130°.


Download Product Brochure (pdf 1MB)



Product Features

>2.5 x 1.0 x 0.7 mm right angle SMD LED, 0.7 mm thickness
>Low power consumption
>Wide viewing angle
>Ideal for backlight and indicator
>Package: 3000 pcs / reel
>Moisture sensitivity level: 3
>Tinned pads for improved solderability
>Halogen-free
>RoHS compliant

Applications

>Backlight
>Status indicator
>Home and smart appliances
>Wearable and portable devices
>Healthcare applications
