Toshiba Launches Silicon Carbide MOSFET Module that Contributes to Higher Efficiency and Miniaturization of Industrial Equipment

2021-02-25 | Return

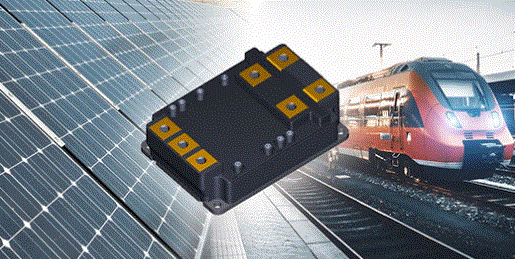

TOKYO—Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched “MG800FXF2YMS3,” a silicon carbide (SiC) MOSFET module integrating newly developed dual channel

SiC MOSFET chips with ratings of 3300V and 800A, for industrial applications. Volume production will start in May 2021.

To achieve a channel temperature of 175°C, the new product adopts an iXPLV (intelligent fleXible Package Low Voltage) package with silver sintering internal bonding technology and high mounting-compatibility The new module meet the needs for high-efficiency, compact equipment for industrial applications such as converters and inverters for railway vehicles, and renewable energy power generation systems.

Applications
> Inverters and converters for railway vehicles
> Renewable energy power generation systems
> Industrial motor control equipment

Features
> Drain-source voltage rating : VDSS=3300V
> Drain current rating : ID=800A Dual
> High channel temperature range : Tch=175°C
> Low loss :
   Eon=250mJ (typ.)
   Eoff=240mJ (typ.)
   VDS(on)sense=1.6V (typ.)
> Low stray inductance : Ls=12nH (typ.)
> High power density small iXPLV package

Main Specifications

(unless otherwise specified, @Tc=25°C)

Part number			MG800FXF2YMS3
Package			iXPLV
Absolute maximum ratings	Drain-source voltage V_DSS (V)		3300
	Gate-source voltage V_GSS (V)		+25/-10
	Drain current (DC) I_D (A)		800
	Drain current (pulsed) I_DP (A)		1600
	Channel temperature T_ch (°C)		175
	Isolation voltage V_isol (Vrms)		6000
Electrical characteristics	Drain-source voltage on-voltage (sense) V_DS(on)sense typ. (V)	@V_GS= +20V, I_D=800A	1.6
	Source-drain voltage on-voltage (sense) V_SD(on)sense typ. (V)	@V_GS= +20V, I_S=800A	1.5
	Source-drain voltage off-voltage (sense) V_SD(off)sense typ. (V)	@V_GS= －6V, I_S=800A	2.3
	Stray inductance module L_SPN typ. (nH)		12
	Turn-on switching loss E_on typ. (mJ)	@V_DD=1800V, ID=800A, T_ch=150°C	250
	Turn-off switching loss E_off typ. (mJ)	@V_DD=1800V, I_D=800A, T_ch=150°C	240

Source: http://www.semicon.toshiba.co.jp/eng/
