INTRODUCTION

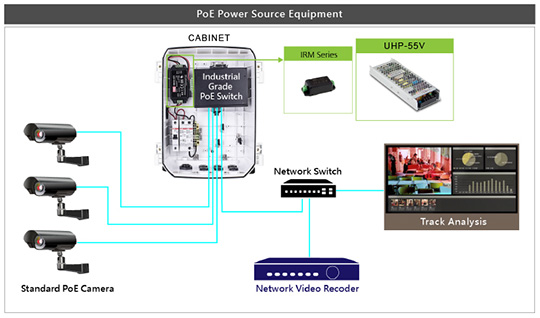

The UHP series has been on the market for more than 2 years. To meet more fields of application and provides customers with a more complete selection of output voltage models, MEAN WELL especially introduces the 55V output models to UHP-200/350/500 series. The 55 voltage output model of UHP series can be applied in telecom, charging,PoE, and electrolysis application.

UHP series is the new industrial power supply generation, featuring several benefits due to fanless design, such as dusty-free, noise-free, and longer lifetime. The semi-potted design of UHP series can assist the parts to dissipate heat and provide moisture-proof, dust-proof and vibration-resistant functions to prolong the lifetime of products .

55V Output models of UHP-200/350/500 Series :

Series	Output Voltage/Current	Output Voltage Range
UHP-200	55V/3.6A	45~58V
UHP-350	55V/6.3A	45~58V
UHP-500	55V/8.9A	45~58V

FEATURES
> Slim and low profile design
> Fanless design,convectin cooling
> Protections:Short circuit/Over voltage/Over temperature/Over Load
> DC OK active signal and redundant function (option)
> LED Indicator for Power on
> 3 years warranty

APPLICATION

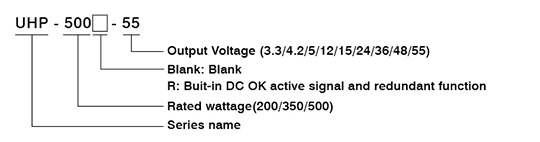

ORDER INFORMATION


DOWNLOAD SPEC
UHP-200-55 Series
UHP-350-55 Series
UHP-500-55 Series
