Toshiba Electronic Devices & Storage Corporation as launched four 650 V Schottky Barrier Diode (SBD) products to expand its lineup : “TRS12N65FB,” “TRS16N65FB,” “TRS20N65FB,” and “TRS24N65FB” that use SiC (Silicon Carbide), a new material allowing higher efficiency of power supply PFCs (Power Factor Corrections). They use the TO-247 package and offer four forward DC current ratings (Both Legs) - 12 A, 16 A, 20 A, and 24 A - supporting increase of power of equipment.

The new products are Toshiba’s second-generation SiC SBDs with the improved JBS (Junction Barrier controlled Schottky) structure. They feature high surge current capability and low-loss characteristics, with a non-repetitive peak forward surge current rating (Per Leg) of 92 A[1], about 53 %[2] improvement, and typical forward voltage (Pre Leg) of 1.45 V, about 6 %[2] reduction compared with our first-generation products. These features allow higher efficiency and larger margins in thermal design of equipment.

Toshiba will expand lineup in the future and contribute to higher efficiency and downsizing of communications equipment, servers, inverters, and other products.

Notes :
[1] Case of TRS24N65FB
[2] TRS24N65FB is compared with TRS24N65D

Features

High non-repetitive peak forward surge current ratings :
IFSM (Per Leg) / (Both Legs)=52 A / 104 A (TRS12N65FB)
IFSM (Per Leg) / (Both Legs)=65 A / 130 A (TRS16N65FB)
IFSM (Per Leg) / (Both Legs)=79 A / 158 A (TRS20N65FB)
IFSM (Per Leg) / (Both Legs)=92 A / 184 A (TRS24N65FB)

Low forward voltage :
VF (Per Leg)=1.45 V (typ.) @IF=6 A (TRS12N65FB)
VF (Per Leg)=1.45 V (typ.) @IF=8 A (TRS16N65FB)
VF (Per Leg)=1.45 V (typ.) @IF=10 A (TRS20N65FB)
VF (Per Leg)=1.45 V (typ.) @IF=12 A (TRS24N65FB)

Applications
Power supplies for industrial equipment
(base stations, PC servers, power supplying facilities for electric vehicles and laser beam machines, etc.)

Power supplies for consumer equipment
(organic EL-TVs, audio amplifiers, projectors and multi-function printers, etc.

Product Specifications
(Unless otherwise specified, @Ta=25 °C)

Part number			TRS12N65FB	TRS16N65FB	TRS20N65FB	TRS24N65FB
Packages			TO-247
Absolute maximum ratings	Repetitive peak reverse voltage VRRM (V)		650
	Forward DC current IF(DC) (A)	Both Legs	12	16	20	24
	Non-repetitive peak forward surge current IFSM (A) @t=10 ms	Per Leg	52	65	79	92
		Both Legs	104	130	158	184
	Junction temperature Tj(°C)		175
Reverse current IR typ. (μA) @VR=650 V		Per Leg	0.3	0.4	0.5	0.6
Forward voltage VF typ. (V)	Per Leg		1.45
		@IF (A)	6	8	10	12
Total junction capacitive charge Qcj typ.(nC) @VR=0.1to400 V		Per Leg	15	19.4	24	30
Thermal resistance (junction-to-case) Rth(j-c) max(°C/W) @Tc=25°C		Per Leg	2.2	1.8	1.4	1.3
		Both Legs	1.1	0.9	0.7	0.65

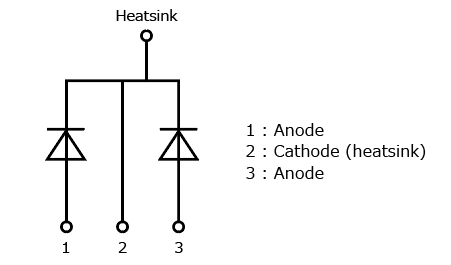

Internal Circuit

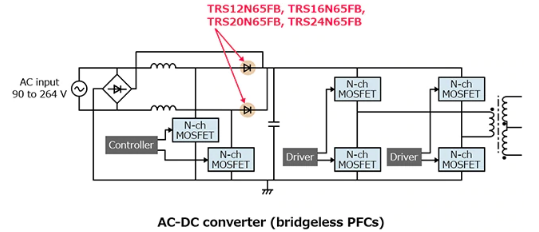

Application Circuit Example


The application circuits shown in this document are provided for reference purposes only. Thorough evaluation is required, especially at the mass-production design stage. Providing these application circuit examples does not grant any license for industrial property rights.

Information in this document, including product prices and specifications, content of services and contact information, is correct on the date of the announcement but is subject to change without prior notice.
