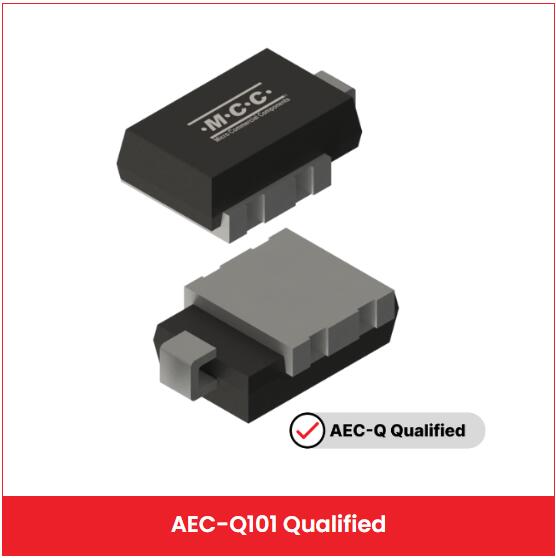

Introducing MCC Semi’s latest TVS diode that was made for unrelenting overvoltage protection in a compact DO-218AB package: SM6S24AHE3.

Safeguarding sensitive electronic components from voltage transients and ESD has never been easier. With an exceptional peak pulse power of up to 4600W (10/1000µs waveform) and working voltage of 24V, this TVS diode gets the job done in the most demanding auto and industrial applications. For added assurance, this component is also AEC-Q101 qualified to comply with stringent industry standards.

Its IEC 61000-4-2 (ESD) protection rating is an impressive ±30kV for both air and contact discharge, meaning common electrical disturbances aren’t cause for concern.

In addition to high peak pulse power, our new TVS diode can handle up to operating junction temperatures up to 175°C.

For dependable resilience no matter what the operating environment holds, MCC’s SM6S24AHE3 is the reliable solution for protection from transients, ESD, and overvoltage.

The full SMD6S TVS Series offers the same robust protection in working voltages from 10V to 43V. Explore the full SMD6S TVS Series.

Features & Benefits:
- AEC-Q101 Qualified: Compliant with automotive industry standards for reliability.
- High Peak Power Dissipation:
  4600W (10/1000µs waveform)
  3600W (10/10000µs waveform)
- IEC 61000-4-2 (ESD) Test:
  ±30kV (Air)
  ±30kV (Contact) protection
- Operating Junction Temperature: Up to 175 °C, ensuring functionality in high-temperature environments.
- Excellent Clamping Capability: Effectively limits voltage spikes to protect sensitive circuits.

Product Highlights
Our 4600W SMD6S TVS is designed to deliver the pinnacle of overvoltage protection and reliable performance in a space-saving package.

1. Enhanced Overvoltage Protection
With high peak power dissipation capabilities, our TVS diode provides superior protection against voltage transients, ensuring the safety and longevity of sensitive automotive electronics.

2. Reliability in Harsh Conditions
The AEC-Q101 qualification and the ability to operate at junction temperatures up to 175 °C make this diode highly reliable in demanding automotive environments.

3. Effective ESD Shielding
A strong ESD protection rating of ±30kV (air and contact) safeguards electronic components from electrostatic discharge, reducing the risk of damage during handling and operation.

4. Compact and Efficient Design
Housed in a DO-218AB package, MCC’s TVS offers a space-saving solution without compromising performance, making it ideal for modern automotive applications where space is often limited.

Applications
MCC’s SM6S series TVS diode boasts the robust features and versatility that make it well-suited for diverse and demanding applications:

Automotive：
- Load Dump Suppression: Protects electronic systems from voltage spikes caused by sudden changes in electrical load.
- Transient Voltage Suppression: Safeguards sensitive components from harmful transients during power fluctuations

Industrial：
- Equipment Protection: Shields industrial machinery and control systems from voltage surges and ESD events.
- Power Supply Protection: Provides transient protection for power distribution systems in industrial settings
