New Press Pack IEGT That Contributes to Size Reduction and Higher Output for High-Voltage Converters Such as DC Power Transmission Systems and Industrial Motor Controller

2024-02-14 | 返回
Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched a newly developed press pack IEGT[1] "ST3000GXH35A” with ratings of 4500 V/3000 A for use in high-voltage converters.

The new product ST3000GXH35A has optimized N buffer layer design, thereby reducing approximately 400 V[2] of turn-off-voltage oscillation peak-value (Vcp[3]) at low current, compared with the Toshiba’s existing product[4]. This helps simplify the snubber circuit.
In addition, the measuring voltage of short-circuit pulse-width has been enhanced to 3400 V[5] in response to applications requiring high voltage.
This allows facilitating the short-circuit protection design of converters.

Notes:
[1] IEGT: Injection Enhanced Gate Transistor
[2] As of August 2022, values measured by Toshiba
[3] Conditions for Vcp (max): VCC=3400 V, IC=300 A, LS≈300 nH, RG(off)=39 Ω, VGE=±15 V, Tj=150 °C
[4] Existing product: ST3000GXH31A
[5] Existing product ST3000GXH31A is 3200 V

Applications

>DC power transmission
>Static VAR compensator
>Industrial motor controller

Features

>Maximum junction temperature rating: Tj (max)=150 °C
>Approximately 400 V[2] reduction in turn-off voltage oscillation peak-value (Vcp [3]) at low current
>Enhanced 3400 V[5] of short-circuit pulse-width

Internal Circuit

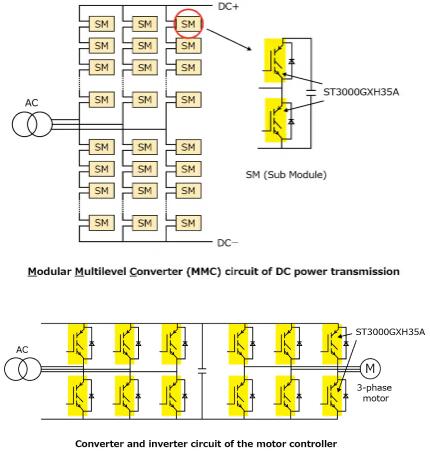

Application Circuit Examples



Note:
The application circuits shown in this document are provided for reference purposes only.
Thorough evaluation is required, especially at the mass production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.

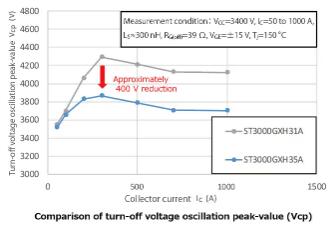

Characteristic Curve[4]
