MCC Launches Four Auto-Grade ESD Protection Diodes for Diverse Applications

2024-01-10 | 返回

Safeguard Sensitive Electronics with Dual Bidirectional Protection in SOT-23 Package

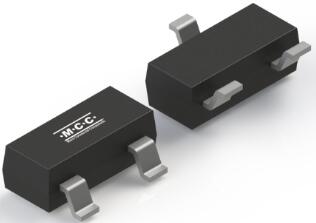

Say hello to MCC Semi’s lineup of new dual bidirectional ESD protection diodes: ESD15VT2BHE3-TP, ESD27VT2BHE3-TP, ESD3V3T2BHE3-TP, and ESD7V0T2BHE3-TP. Available in the compact SOT-23 package size, these diodes deliver reliable protection from electrostatic discharge (ESD) and other transients— such as lightning — for dual single lines.

Reverse standoff voltages ranging from 3.3V to 27V, low clamping voltage, and a max leakage of only 0.5µA ensure effective protection for sensitive electronic components, even in harsh conditions.

Our dual bidirectional ESD protection diodes comply with stringent industry standards, including AEC-Q101, IEC 61000-4-2 (ESD immunity test), and IEC61000-4-5 (Lightning), so there’s no compromising when it comes to performance.

Whether it’s a demanding automotive electronics system or a smart consumer device, MCC delivers reliable performance when shielding sensitive equipment with our dual bidirectional ESD protection diodes.

Features & Benefits:

>Low clamping voltage for effective protection
>Minimal leakage with a maximum of 0.5µA
>Meets IEC 61000-4-2 (ESD) immunity test:
- Air discharge: ±30kV
- Contact discharge: ±30kV
>Complies with IEC61000-4-5 (Lightning) standards, with a range of 6 to 25A (8/20μs)
>AEC-Q101 qualified
>Compact SOT-23 package size

Source: http://www.mccsemi.com
