TDK announces worldwide availability of a new generation of MEMS barometric pressure sensor platform

2021-09-23 | Return
> Ultra-low noise MEMS barometric pressure sensor in a compact footprint
> Accurately measures a height difference as small as 5cm
> Suitable for Smart Phones, Tablets, Drones, AR/VR, and Smart Home appliances

TDK Corporation announces the worldwide availability of the InvenSense ICP-20100 platform, a new generation, feature-rich barometric pressure sensor, ideal for applications in smart phones, tablets, drones, and smart home appliances. With architectural innovations, ICP-20100 improves on the industry-leading accuracy, long term drift, and temperature stability of the SmartPressure™ product family.

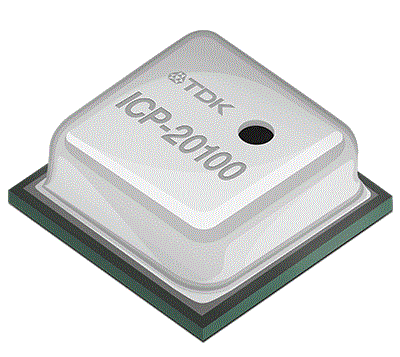

The ICP-20100 device combines a barometric pressure and a temperature sensor in a small 2.0 mm x 2.0 mm x 0.8 mm package. The device enables flexible user designs with multiple input voltage levels including 1.2V, 1.8V and 3.3V, and a choice of I²C, I3CSM and SPI interfaces. The ICP-20100 device can be configured to achieve ultra-low noise or ultra-low power performance and has the versatility to perform anywhere in-between.

The InvenSense SmartPressure™ family uses an innovative capacitive MEMS architecture to deliver lower power consumption and lower noise than competing pressure sensors technologies. The ICP-20100 pressure sensor can operate over wide temperature ranges and deliver measurement accuracies required by a variety of applications including, 3D geolocation and emergency location service (E911), mobile indoor/outdoor navigation, sport and fitness activity tracking, and altitude-hold in drones. The sensor assists in extending battery life for always-on applications due to its extreme low-power consumption. With ultra-low noise pressure sensing capabilities, the ICP-20100 can detect altitude changes of less than 5 cm.

“With its low noise architectural innovations, ICP-20100 underscores TDK’s continued commitment to bringing innovative human sensing solutions,” said Uday Mudoi, Director of Product Marketing at InvenSense, a TDK Group Company. “ICP-20100 accurately measures pressure over a long period of time, enabling new critical and important applications such as determination of accurate location of E911 calls.”

A comprehensive development kit (DK-20100) and evaluation platform are also available along with necessary software to enable quick-to-market development of customer systems. In addition to the ICP-20100, the ICP-10125, ICP-10101, and ICP-10111 pressure sensors are part of the SmartPressure™ product family of solutions and are currently in worldwide distribution. Please visit https://invensense.tdk.com/smartpressure/or contact InvenSense Sales at sales@invensense.com.

Glossary

> IoT: Internet of Things
> Pa: Pascal
> E911: Enhanced 911 service
> EV: Evaluation module
> DK: Developer Kit
> MEMS: Micro-Electro-Mechanical Systems

Main applications

> Smart phones, tablets
> Leisure, sports, and fitness activity monitoring for wearable sensors
> Altitude Control of Drones and Flying Toys
> Virtual Reality and Gaming Equipment
> Altimeters and barometers for portable devices
> Indoor/outdoor navigation (dead-reckoning, floor/elevator/step detection)
> Smart home appliances such as robotic vacuum cleaners

Main features and benefits

> Pressure operating range: 30 to 110 kPa
> Pressure sensor temperature coefficient offset: ±0.5 Pa/ºC
> I²C, I3C SM and SPI interface
> FIFO, Interrupt, User configurable ODR/OSR
> RoHS and Green compliant

Key Data

Product


Package Size
(mm)

Range
(kPa)

Logic
Supply Voltage


Operating
Voltage Supply


Digital
Output


Temperature
Range
(ºC)


ICP-20100

2 × 2 × 0.72

30 – 110

1.2V, 1.8V, 3.3V

3.3V, 1.8V

SPI, I²C, I3C

-40 to 85


DK-20100

SmartPressure™ Development Kit for ICP-20100 Pressure Sensor
