RSD-500 Series 500W Fanless Enclosed Type DC/DC Converter

2020-06-03 | Return


INTRODUCTION
After releasing the enclosed type DC/DC converter family, the RSD-30/60/100/150/200/300 series, MEAN WELL is proud to announce the RSD-500 series (500W) to enable enclosed type DC/DC integration into higher power applications. Since the RSD-500 series is designed to meet both railway and ITE safety standards, it is suitable for DC/DC applications such as industrial & railway control, security control, and telecommunication systems.

The RSD-500 series has 1U low-profile enclosure design and input/output terminal blocks, which enables quick and easy wiring during installations. The product design also includes outstanding features such as fanless design, semi-potted with silicone gel, 2:1 wide input range, 4000Vdc I/O isolation, -40~80°C wide operating temperature range, and 5G anti-vibration capability. In addition, the RSD-500 series is certified to the ITE IEC62368-1/UL62368-1/RCM AS/NZS62368.1, EN55032, EAC TP TC004, as well as EN50155 railway safety standards, ensuring the RSD-500 can perform reliably as additional system insulation, DC UPS, battery voltage regulator, etc. in all fields of ITE and railway applications.

FEATURES
> Low-profile enclosed type design, 1U height (41mm)
> Fanless semi-potted design, improves system anti-vibration and moisture/dust proof capabilities
> 2:1 wide input range
> -40~+80°C ultra-wide operating temperature range
> 4000Vdc IP-OP reinforced isolation
> Output voltage adjustable (+15%) via built-in SVR
> Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage
> LED power indicator
> Operating altitude up to 5000m
> Safety approval:
   Railway: EN50155/IEC60571/EN45545-2/EN50121-3-2
   ITE:CB IEC62368-1/UL62368-1/ RCM AS/NZS62368.1/EN55032/EAC
> Ultra slim, dimensions (Lx W x H): 237 x 100 x 41mm
> 3 years warranty

APPLICATION

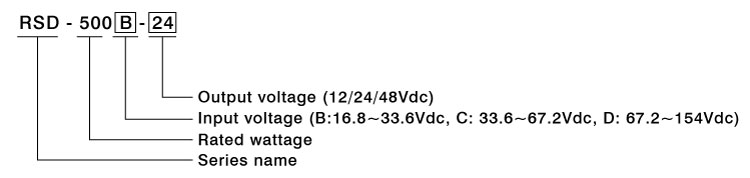

ORDER INFORMATION


DOWNLOAD SPEC
RSD-500 Series
