PHP-3500Series 3500W Digitalized Parallelable High Efficiency Water-cooled Power Supply

2019-09-09 | Return

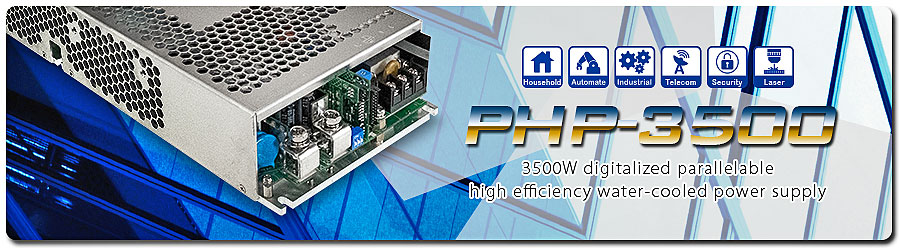

PHP-3500 is a 3.5kW single output enclosed type AC/DC water-cooling power supply which adopts fully digitalized design and possesses rich features such as 96% high efficiency, programmable output, support communication, multiply output power in parallel connection, in 60mm low profile and 18W/inch3 power density. This series can operate at both 90-264Vac and 120-370Vdc input voltage and offers models with 24/48VDC outputs mostly demanded by the industry. Unique water-cooling technology offers the most effective heat dissipation to each model. Compare with conventional PSU with fan-cooling, it neither has annoying acoustic fan noise nor power fail problem triggered by fan failure event. So, the overall reliability of the power unit is greatly improved! Moreover, PHP-3500 provides vast design flexibility by equipping various built-in functions such as auto de-rating function, remote ON-OFF control, auxiliary power, active current sharing and built-in ORing FETs for output parallel configuration and etc. When PSUs are in parallel operation, maximum power reaches 14kW.

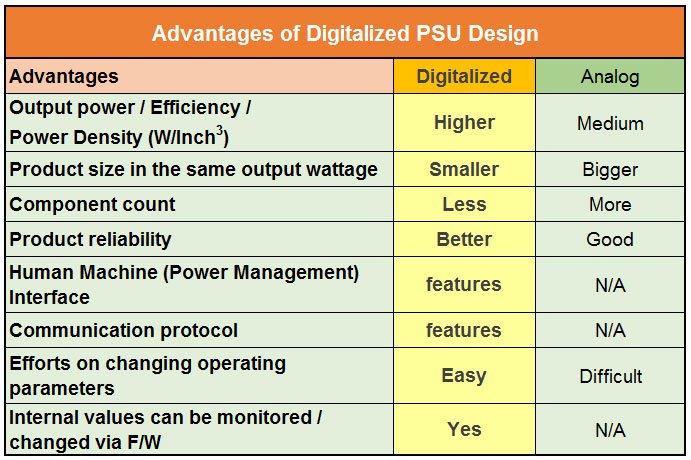

Thanks to continuous R&D innovation on technology, it contributes to MEAN WELL’s first fully digitalized water-cooling PSU series. Digitalized PSU design further improves efficiency in power conversion, product reliability and also makes possible programmable tuning together with monitor and control over electrical parameters. This series features built-in PMBus communication protocols, CANBus as optional. By integrating MEAN WELL’s human-machine interface (HMI) with digital power units, simultaneous system-wise power management is feasible through digital controllers on-board HMI and PSUs. In addition, with active short circuit, overload, overvoltage and over temperature protections, the goal of intelligent power supply is therefore achieved. This series is suitable for applications in industrial laser processing equipment, solid-state microwave telecommunication equipment, food processing equipment and battery charging that require power source capable of ultra-high output (10KW and beyond).

FEATURES

Water-cooled heat dissipation technology
High efficiency up to 96% (48V model)
Universal AC/DC Input
Output voltage and constant current level programmable
Support PMBus communication protocol (CANBus optional)
Built-in Active PFC
Built-in ORing FET to support PSUs in parallel connection
Active current sharing, total system power up to 14000W (3+1)
-30~+70℃ wide range operating temperature
Output signals: Remote ON/OFF, DC-OK, and T-Alarm
Protections: Short Circuit/ Overload / Over voltage/ Over temperature
Optional cold plate
Optional conformal coating
Safety approval: UL/TUV/EAC/CE/CB
Dimensions (LxWxH) - 380x141.4x60mm
5 years warranty
