NSP-1600/3200 Series: 1600W & 3200W Single Output Power Supply

2022-06-17 | Return

INTRODUCTION


In order to satisfy the widely demand of high-power product from customers, the RSP-1600 and RSP-3000 series has been the best choice and commonly selected by the market for its high quality, complete safety regulations and high cost performance. In addition, MEAN WELL DPU-3200 series is the very first fully digital designed power supply. Besides from its ultra-high efficiency, it also implemented digital communication protocols, such as PMbus and CANbus. Which makes DPU-3200 is able to communicate with MEAN WELL Multi-industry general-purpose intelligent controller CMU2. With the combination they can easily form into a 128kW system power solution. With the superior quality and performance of these products, they are able to deliver a stable power source for heavy industrial machine applications, automation related applications, 5G telecom station applications and data center applications.

This year, the world is facing the impact from pandemic as well as the intense material supply chain, effecting the lead-time of some high-power products. Therefore, MEAN WELL specially plan the development of NSP-1600 and NSP-3200 series, strictly selection of the new materials and optimized the circuit design. In addition, NSP series will implement FAN speed control and wider the DC operating range up to 400Vdc in near future to ensure satisfaction of high-power product in the market for the users.

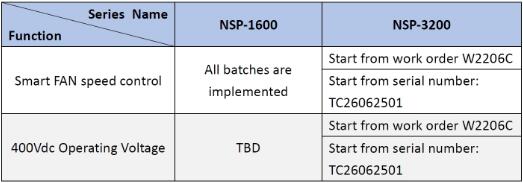

Please refer to following table and latest news for functional updates. If you have any questions, please contact MEAN WELL's personal.


FEATURES

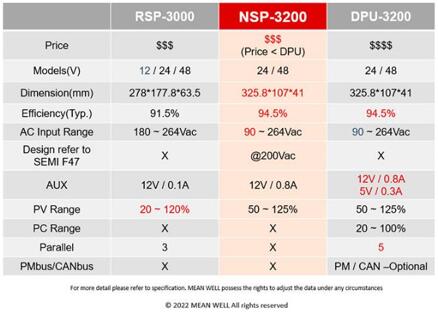

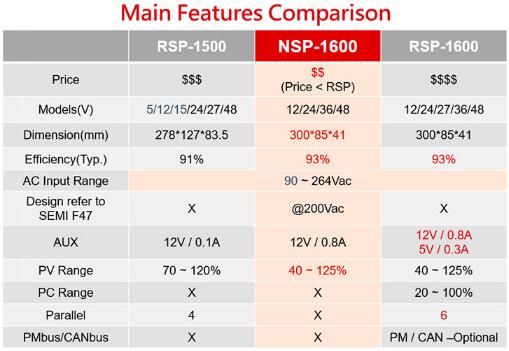

● Input, output and safeties are refer to RSP or DPU series, enable fast design in and win. Please refer to the brief comparison below
● Universal input 90~264Vac
● Maximum efficiency up to 94.5%
● Design refer to SEMI F47 @200Vac
● Built-in PV function
● MTBF>600k hrs


APPLICATION

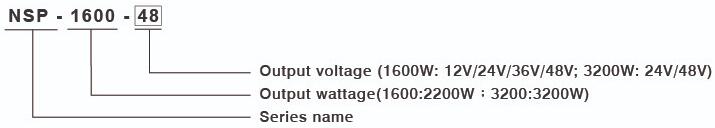

ORDER INFORMATION



DOWNLOAD SPEC

▶ NSP-1600 Series
▶ NSP-3200 Series

Source: https://www.meanwell.com
