Toshiba Releases 150V N-channel Power MOSFET that Uses Latest Generation Process to Improve Power Supply Efficiency

2022-03-31 | Return

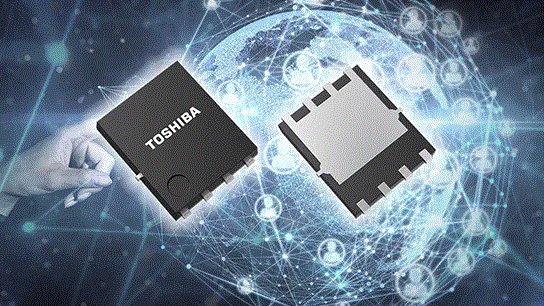

KAWASAKI, Japan—Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched a 150V N-channel power MOSFET “TPH9R00CQH” that uses the latest generation[1] process, “U-MOSX-H,” and that is suitable for use in switching power supplies for industrial equipment—including those deployed in data centers and communications base stations. Shipments start today.

TPH9R00CQH has a drain-source On-resistance about 42% lower than TPH1500CNH, a 150V product that uses the current generation process, U-MOSⅧ-H. Optimization of the new MOSFET’s structure has improved the trade-off[3] between the drain-source On-resistance and two charge characteristics[2], realizing excellent low-loss characteristics. In addition, spike voltage between the drain and source at switching operation is reduced, helping to lower electromagnetic interference (EMI) in switching power supplies. Two types of surface mount packages are available: SOP Advance and the more popular SOP Advance(N).

Toshiba also offers tools that support circuit design for switching power supplies. Alongside the G0 SPICE model, which can verify the circuit function in a short time, the highly accurate G2 SPICE models, which accurately reproduce transient characteristics, are now available.

Toshiba will expand its lineup of power MOSFETs that improve equipment power supply efficiency by cutting losses, helping to reduce power consumption.

Notes:
[1] Toshiba survey as of March 2022.
[2] Gate switch charge and output charge
[3] The product has improved the drain-source On-resistance x gate switch charge by about 20% and the drain-source On-resistance x output charge by about 28% compared to the current product TPH1500CNH (U-MOSⅧ-H series).

Applications
● Power supplies for communications equipment
● Switching power supplies (high efficiency DC-DC converters, etc.)

Features
● Excellent low-loss characteristics.
(trade-off between On-resistance and gate switch charge and output charge)
● Low On-resistance: RDS(ON)=9.0mΩ (max) @VGS=10V
● High channel temperature rating: Tch (max)=175°C

Main Specifications
(Unless otherwise specified, @Ta=25°C)

Part number

TPH9R00CQH

Absolute

maximum

ratings

Drain-source voltage  VDSS  (V)

150

Drain current (DC)  ID  (A)

@Tc=25°C

64

Channel temperature  Tch  (°C)

175

Electrical

characteristics

Drain-source On-resistance  RDS(ON)

@VGS=10V

9.0

max  (mΩ)

@VGS=8V

11

Total gate charge (gate-source plus gate-drain)  Qg

44

typ.  (nC)

Gate switch charge  Qsw  typ.  (nC)

11.7

Output charge  Qoss  typ.  (nC)

87

Input capacitance  Ciss  typ.  (pF)

3500

Packages

Name

SOP Advance

SOP Advance(N)

Size  typ.  (mm)

5.0×6.0

4.9×6.1


Follow the link below for more on Toshiba MOSFETs.
MOSFETs

Follow the link below for more on the highly accurate SPICE models(G2 model).
G2 model
